TOP-8P | SUB-8P | StereoPOWER Audio System
Clarity P is our passive loudspeaker system designed for the home, DJ, or discerning public spaces where exceptional sound and considered design are equally important.

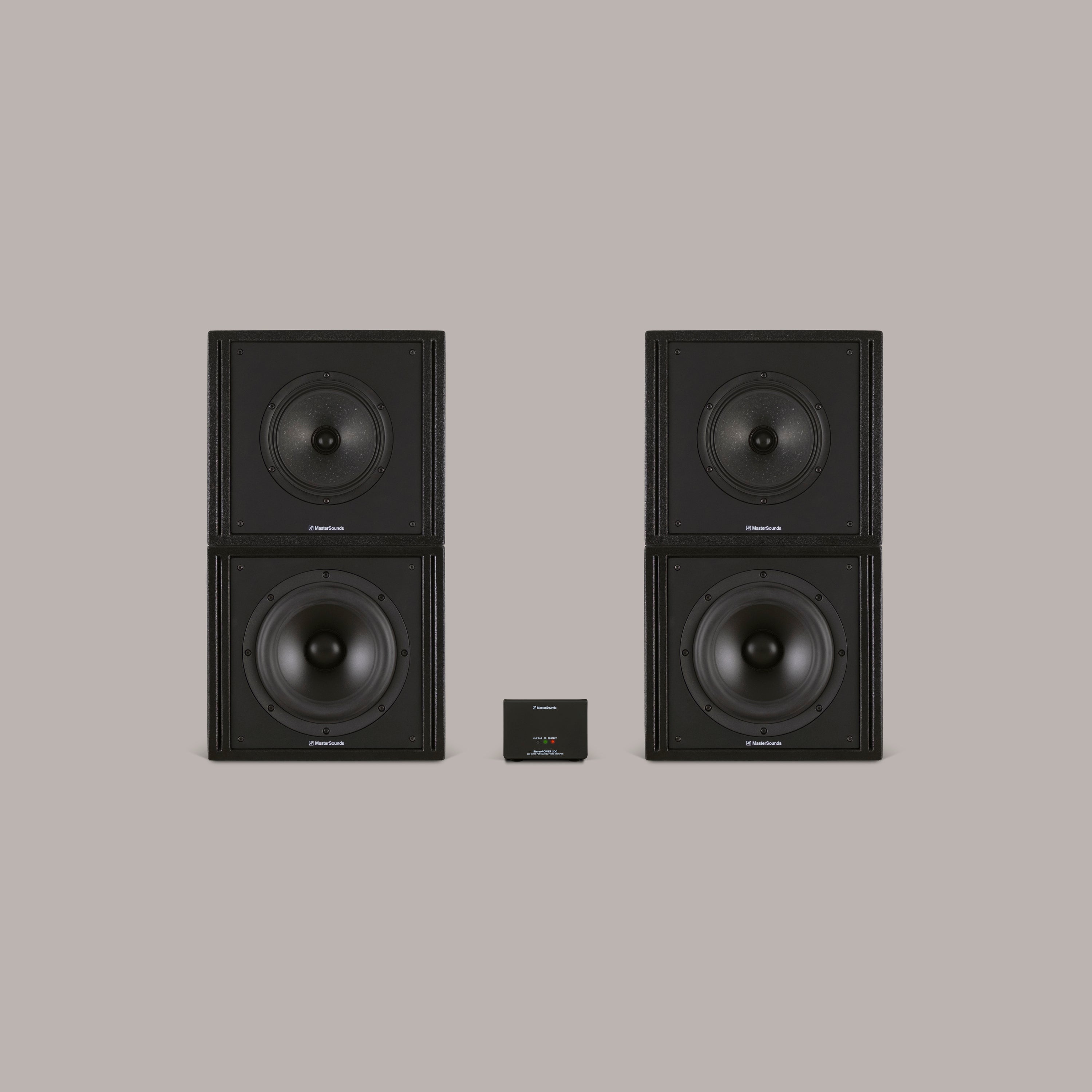

Fitted with Charcoal Black baffles, this configuration includes a stereo pair of TOP-8P 8 inch full range loudspeakers, a stereo pair of SUB-8P 8 inch subwoofers, powered by our StereoPOWER 200 amplifier. A pair of premium braided 4 meter audio cables with Neutrik and Nakamichi banana plug termination are supplied.
Clarity P can be wall mounted with WME-60 brackets.
Stands & colour baffles sold separately.
2-3 week build time.
SOUND & FINISH

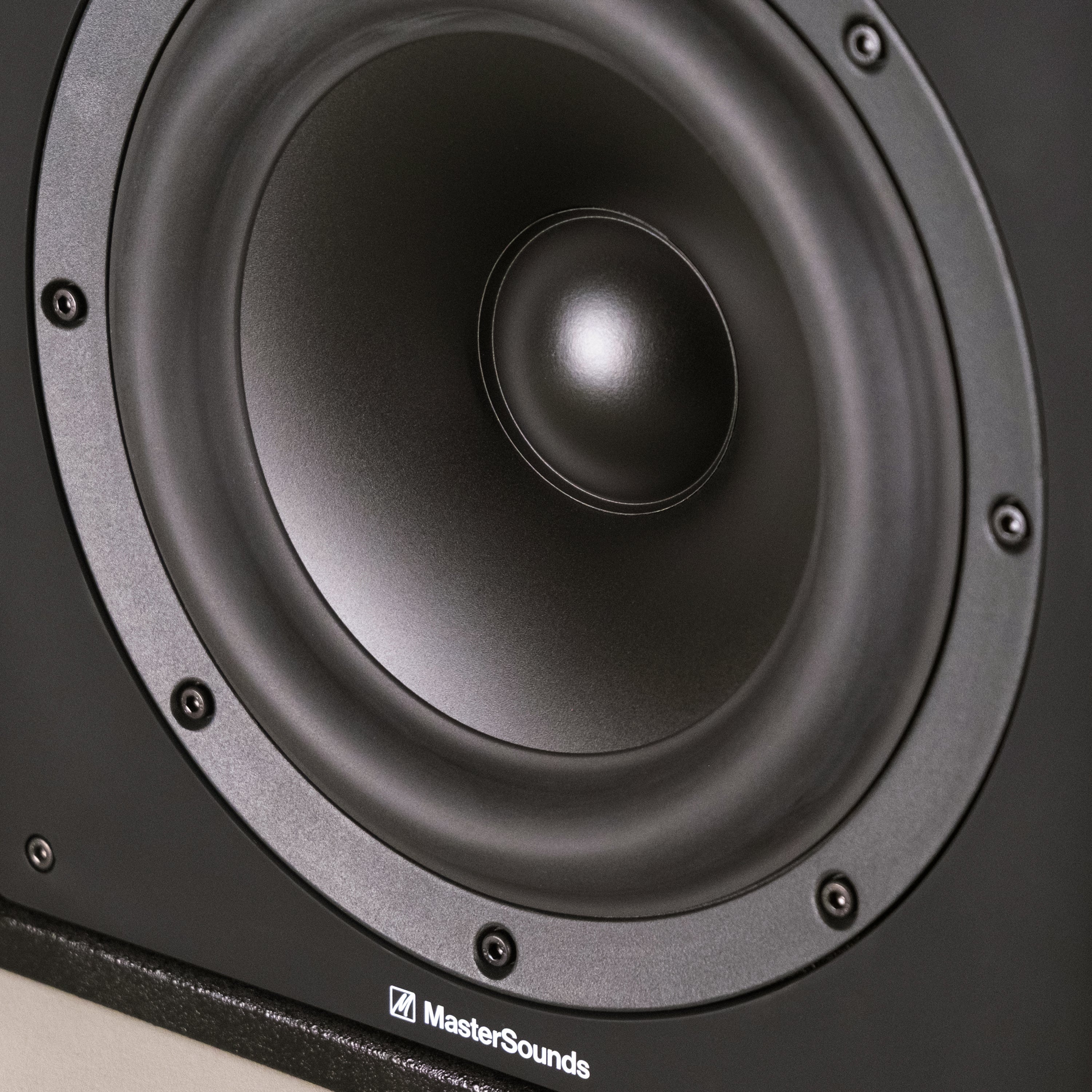

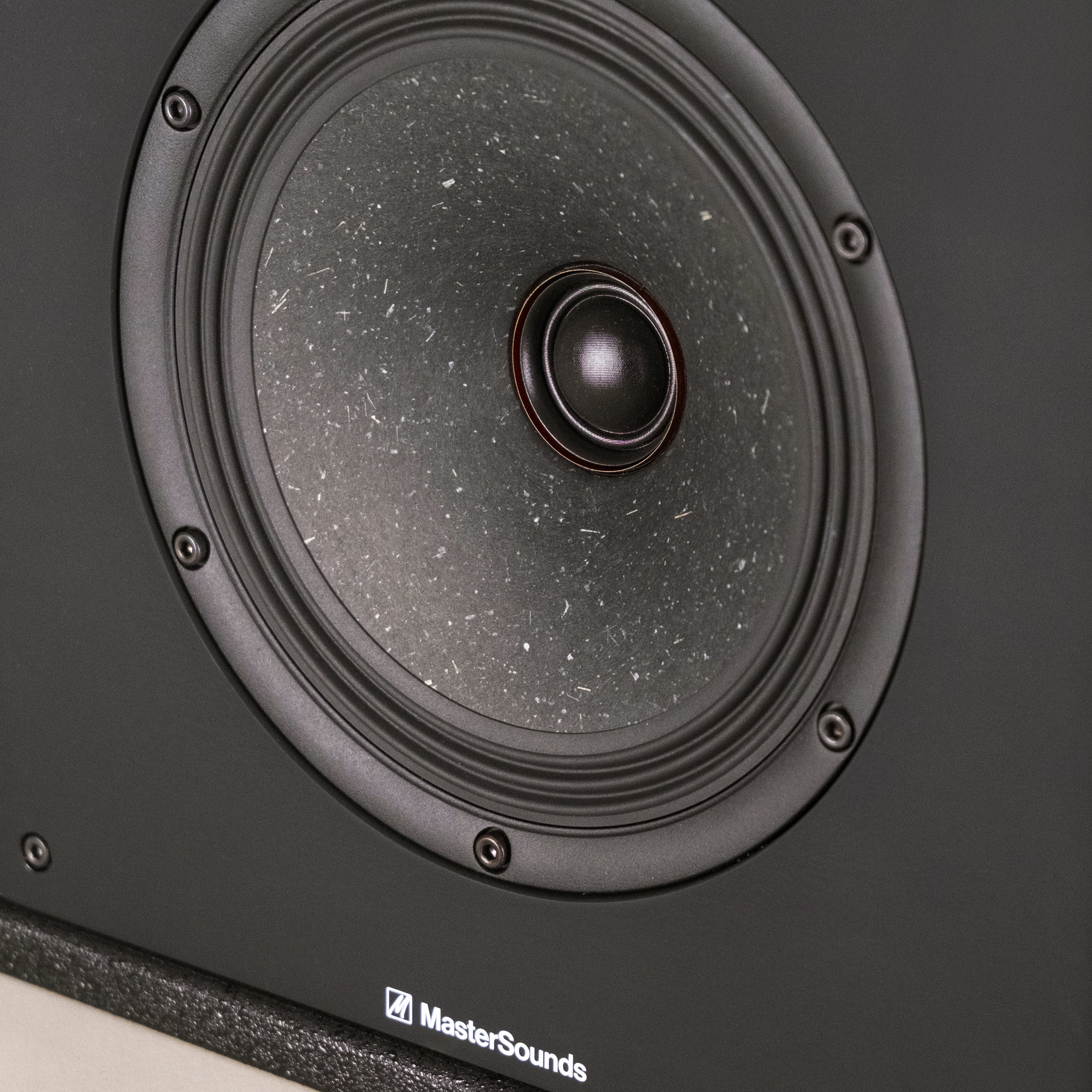

Clarity P features high performance coaxial and low frequency drivers housed within a beautifully proportioned, hand-finished, and textured enclosure. The system delivers an open, natural and dynamic presentation with excellent imaging and impressive output from its compact form.
INTERCHANGEABLE COLOURS

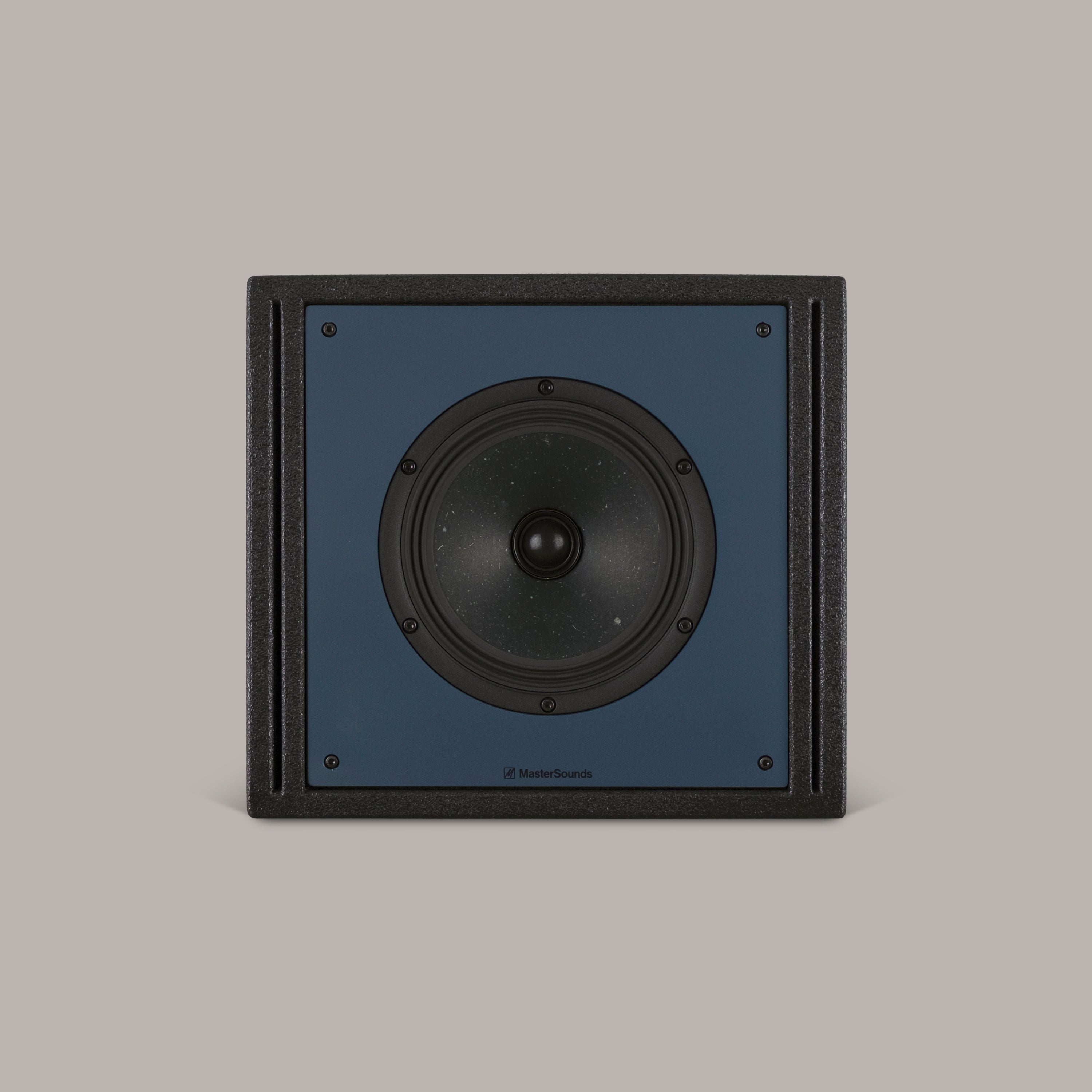

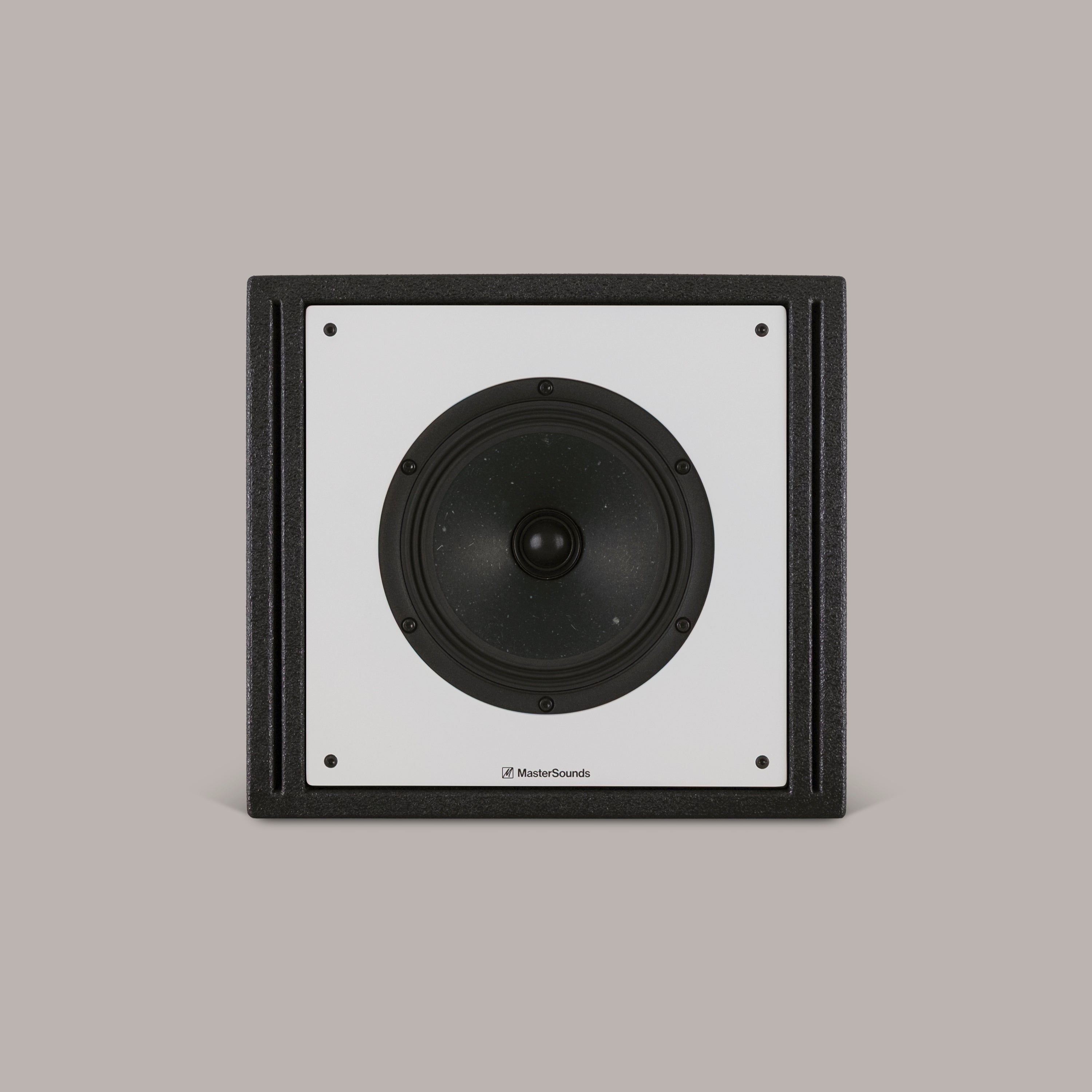

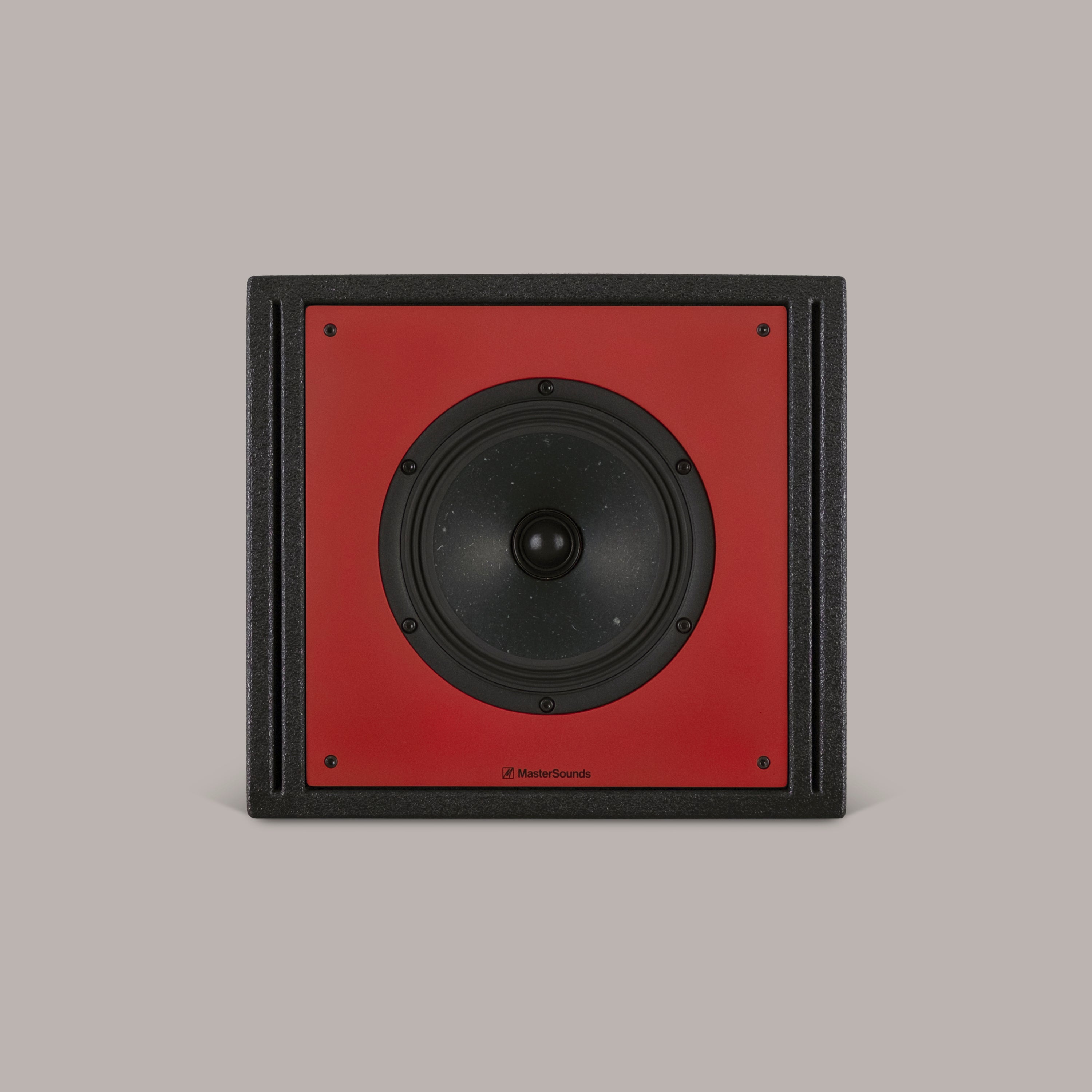

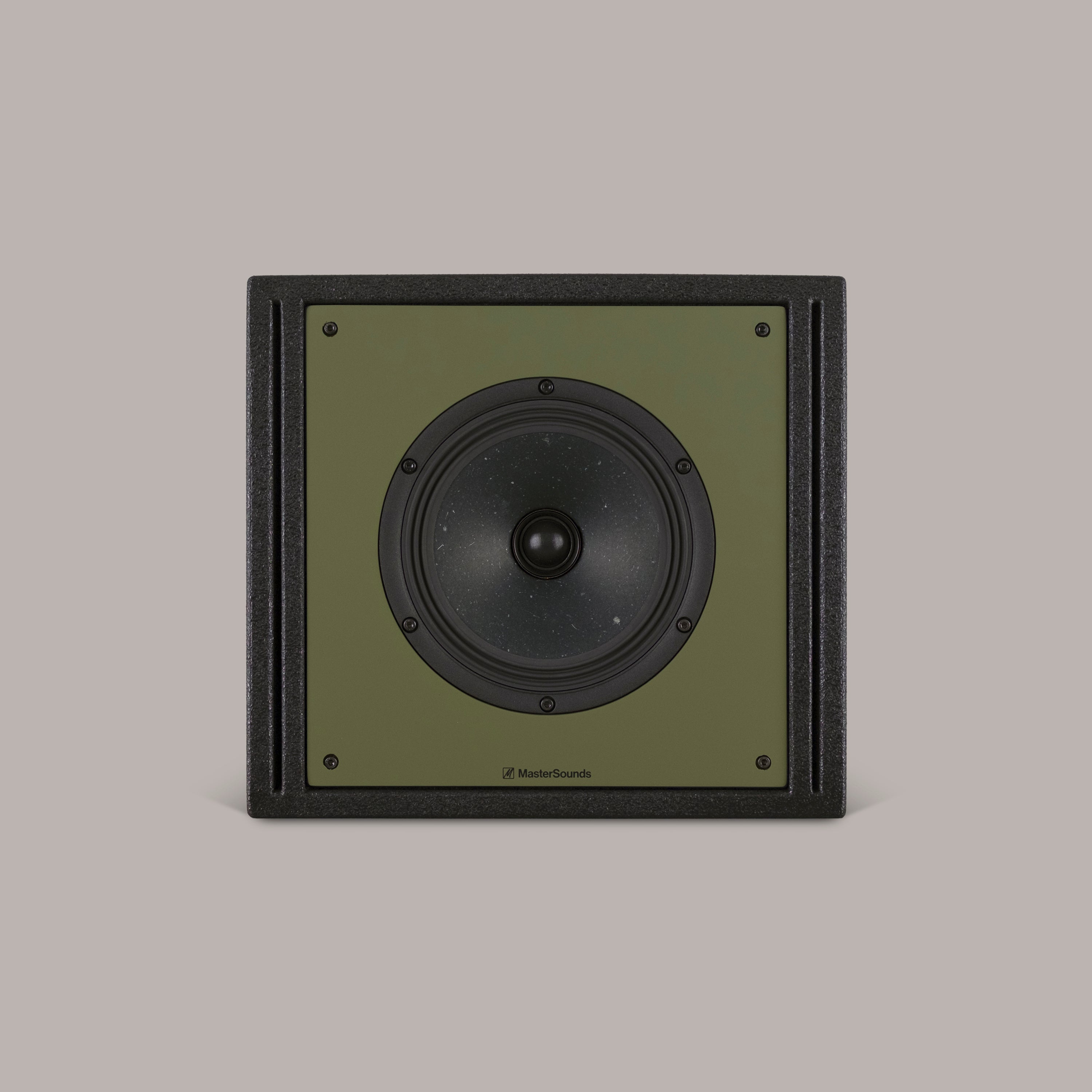

Interchangeable front baffles allow the appearance of Clarity P to be personalised, with signature Charcoal Black supplied as standard and a selection of carefully chosen colour options available separately.
CABLES

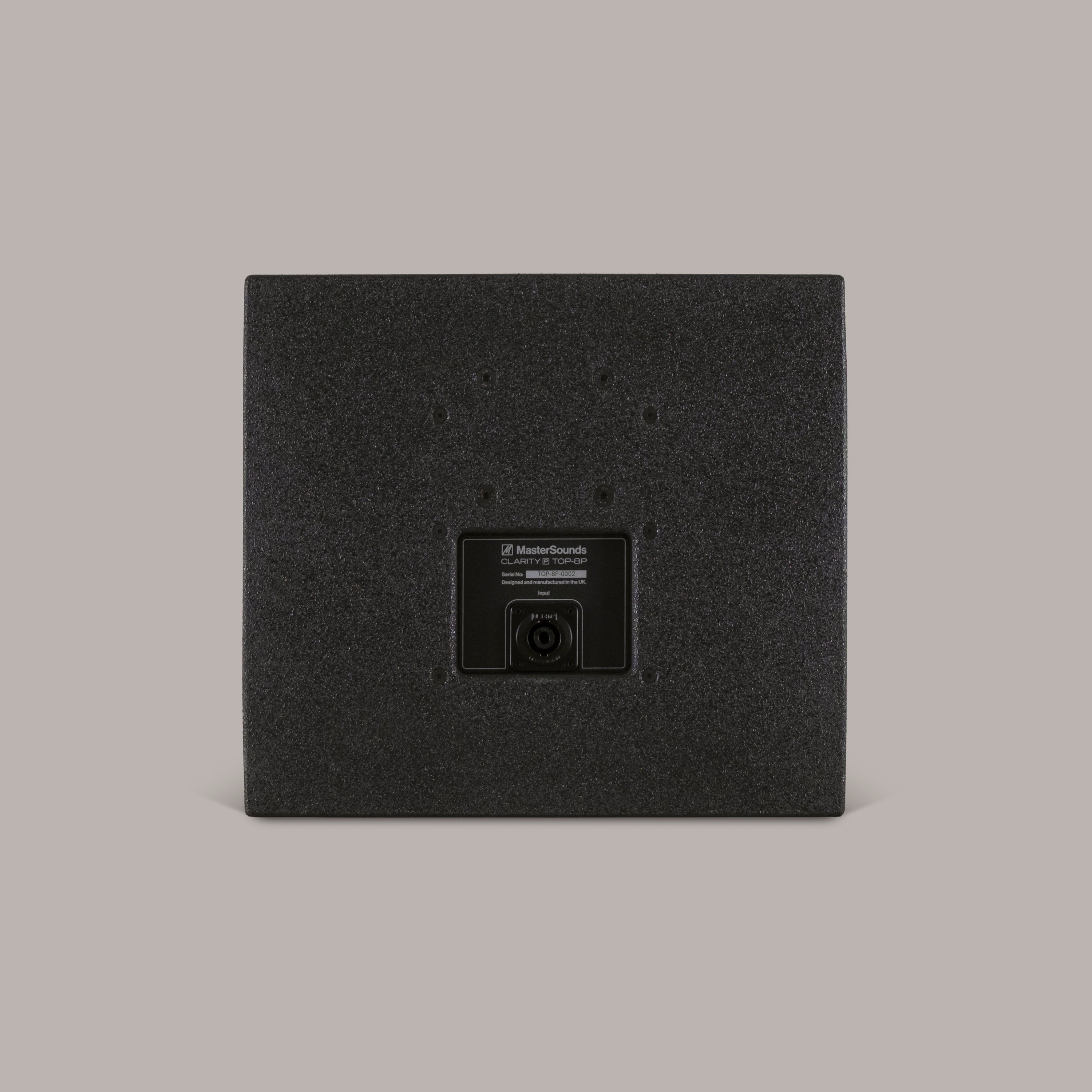

As standard Clarity P ships with 3-meter (9' 10") Neutrik-to-banana-plug loudspeaker cables. The cables are designed to go from any amplifier to the Neutrik input on the TOP-8P.
With SUB-8P, we also supply a pair of 0.7-meter (2' 4") Neutrik to Neutrik connecting cables, which connect SUB-8P to TOP-8P.
There may be a situation where you need a custom length of cable, for instance if you want to place each speaker more than 3 meters from the amplifier, or if you bracket-mount the TOP-8P while keeping the SUB-8P on the floor.
Do let us know your preferred cable length if you require anything custom and we can happily provide a quotation for any non-standard lengths.
We hand-build all cables in-house, using only genuine Neutrik interconnects, Nakamichi banana plugs & Cordial cable.
INTERNATIONAL ORDERS - DUTIES & TAXES (PLEASE READ)
Please note that orders shipped outside the UK will be subject to import duties, taxes and customs clearance fees. These charges are not included in the purchase price and are the responsibility of the recipient. Payment is typically required by the carrier before your order can be delivered.
We recommend checking your country's import regulations before placing your order. If you have any questions, our team will be happy to help.
SHIPPING
Shipping quotes can be considerably higher to certain territories when adding stands and extra items to your shopping bag.
Please contact us at orders@mastersounds.co.uk to see if we can reduce your shipping costs.
Your order is hand built by the MasterSounds team in Stockport, UK, typically 14-21 days prior to shipping.
TECHNICAL SPECIFICATION

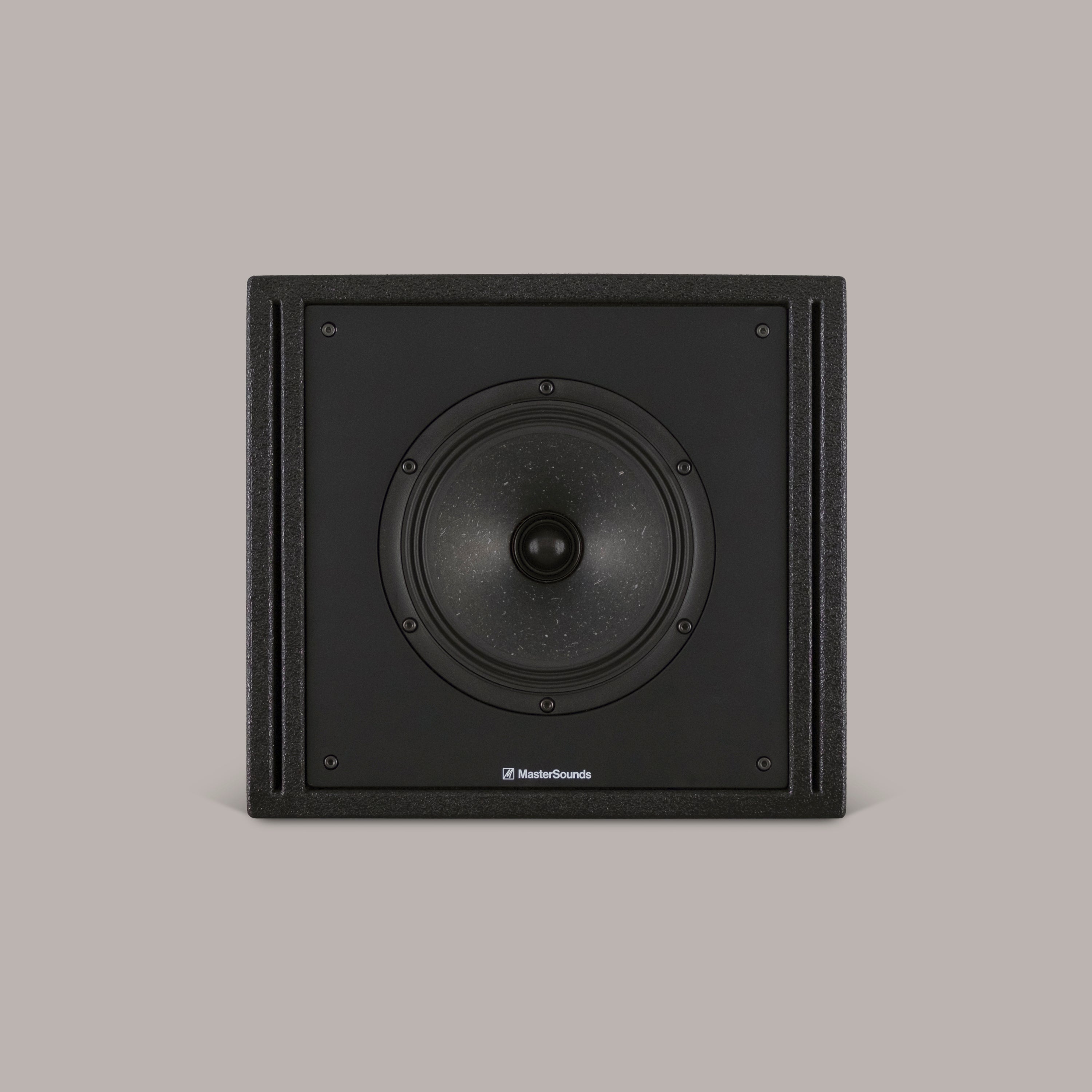

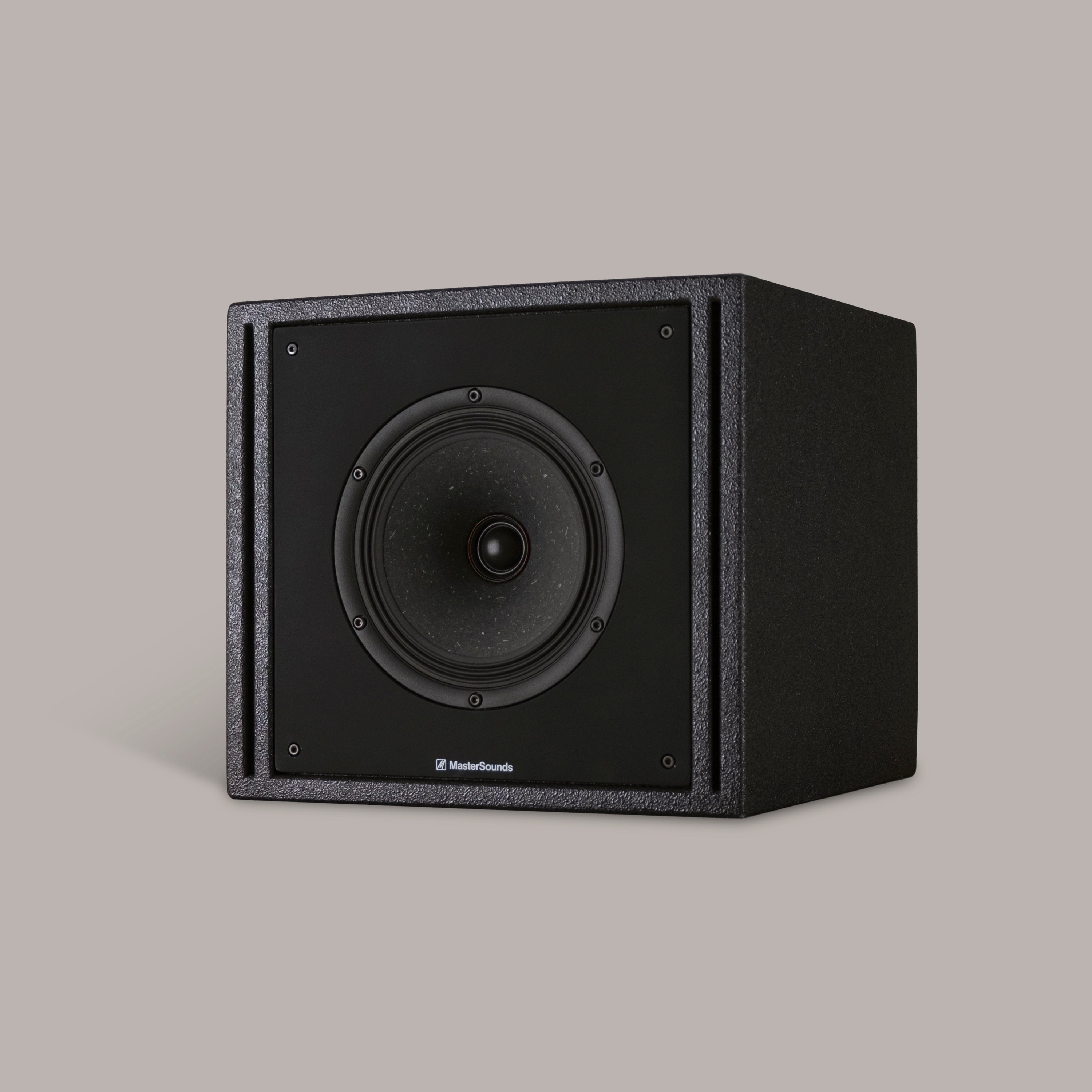

TOP-8P
Frequency Response: 50 – 20 kHz
Power Handling: 150 watts (unclipped)
Nominal Impedance: 8 Ohms
Sensitivity (2.83 V / 1 metre): 90 dB
Recommended Amplifier Power: 25 – 100 watts
Dimensions: 333 mm L × 333 mm W × 299 mm H (13.1 × 13.1 × 11.8 inches)
Weight Each: 8 kg (17 lb 10.2 oz)
Packed Dimensions (Per Speaker): 460 mm L × 460 mm W × 460 mm H (18.1 × 18.1 × 18.1 inches)
Packed Weight (Per Speaker): 13.5 kg (29 lb 12.2 oz)

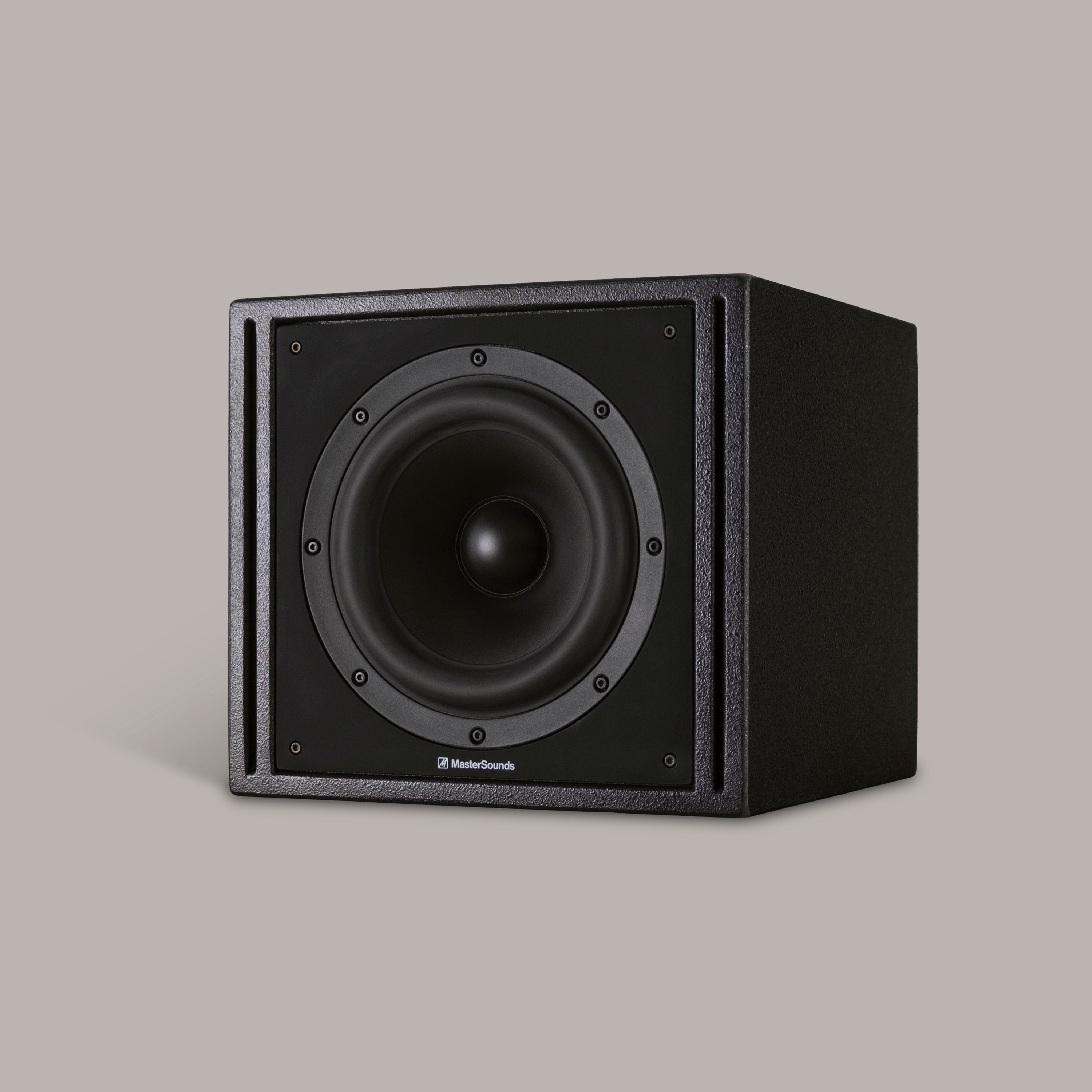

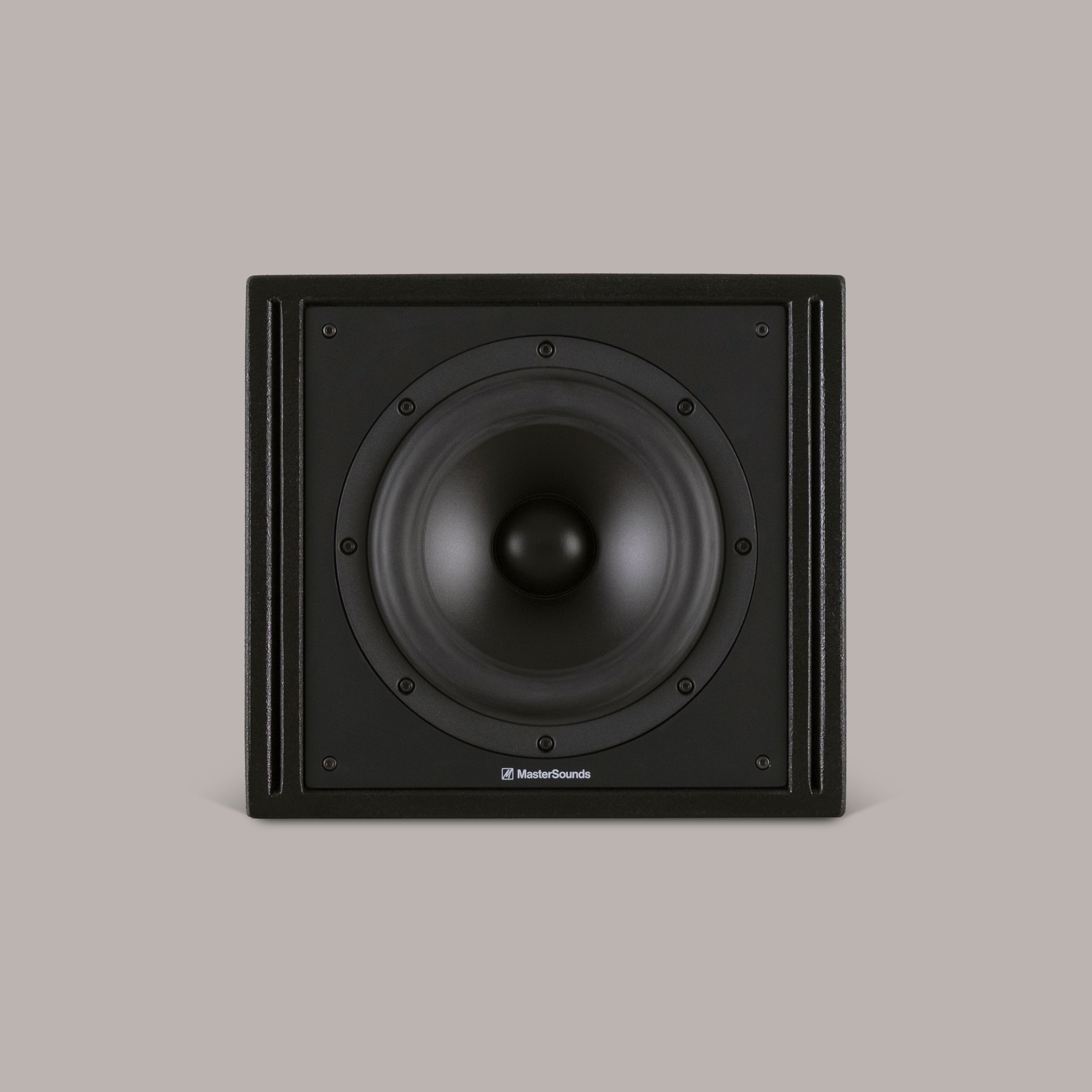

SUB-8P
Power Handling: 250 watts
Frequency Response: 30 – 20 kHz
Nominal Impedance: 4 Ohms
Sensitivity: 90 dB (2.83 V / 1 metre)
Recommended Amplifier Power: 25 – 200 watts
Dimensions: 333 mm L × 333 mm W × 299 mm H (13.1 × 13.1 × 11.8 inches)
Weight Each: 13.7 kg (30 lb 3.3 oz)
Packed Dimensions (Per Speaker): 460 mm L × 460 mm W × 460 mm H (18.1 × 18.1 × 18.1 inches)
Packed Weight (Per Speaker): 17 kg (37 lb 7.7 oz)

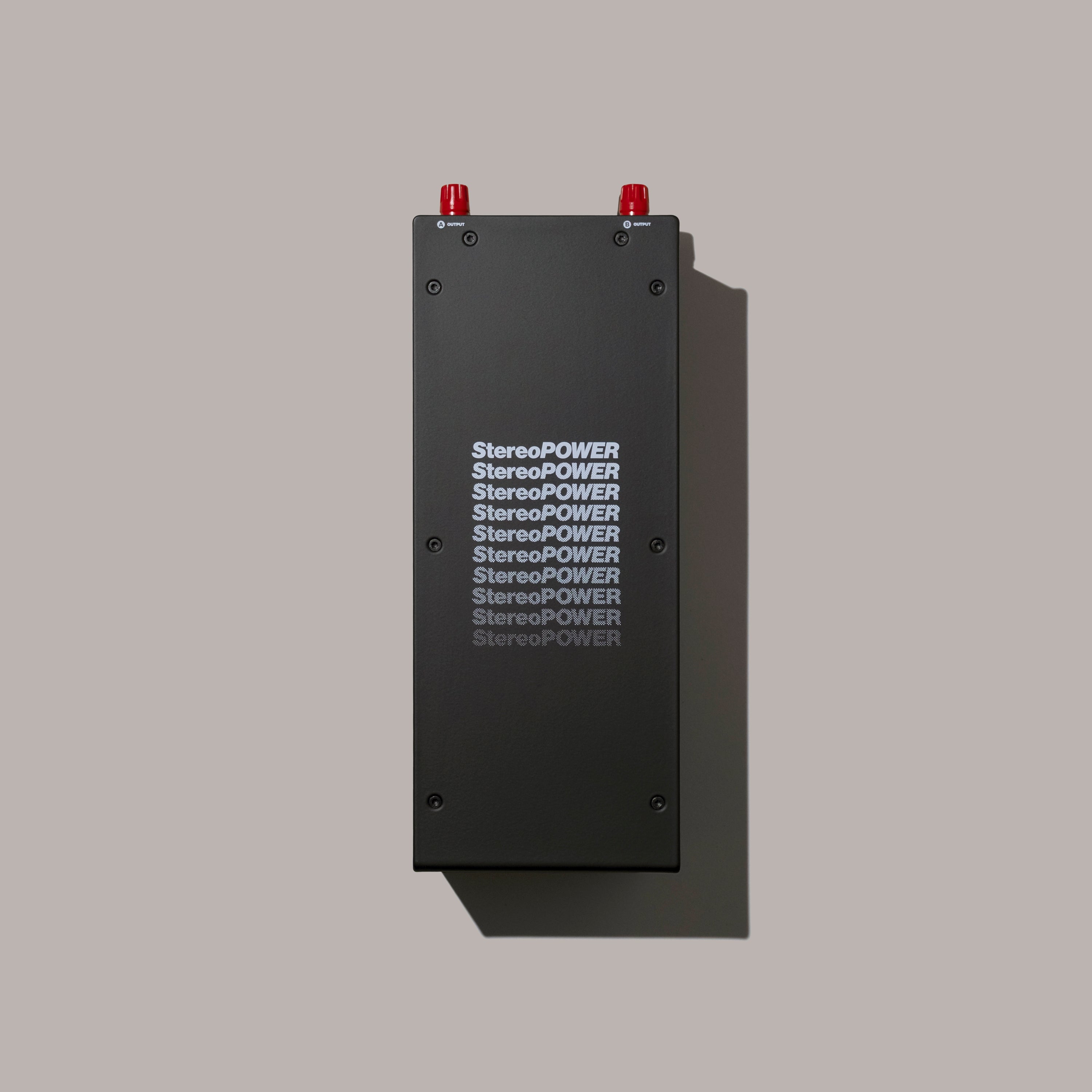

Stereopower 200
Type: Stereo Class D Power Amplifier
Channels: 2
Rated Output: 2 × 200 W
Minimum Load Impedance: 3.5 Ω
Peak Output Current: 13 A
Dynamic Range: 110 dB
THD+N: 0.004% at 10 W / 1 kHz
Maximum Output Voltage: 42 V per channel
Output Noise: 92 µV, A weighted
Inputs: 2 × Balanced 3 pin XLR
Speaker Outputs: Binding posts, banana plug compatible
Mains Input: 100–240 V AC, 50/60 Hz
Amplifier Topology: Class D
Cooling: Internal fan assisted cooling
Dimensions: Length: 283 mm x Width: 115 mm x Height: 88 mm. 11.1 x 4.5 x 3.5 inches
Length including speaker binders: 300 mm. 11.8 inches
Weight Each: 1.8 kg = 3 lb 15.5 oz
Packed weight: 2.7 kg = 5 lb 15.2 oz
Packed size: 390 mm × 200 mm × 235 mm. 15.4 × 7.9 × 9.3 inches
