Clarity M-0812 Audio System
Clarity M is built specifically for your needs.
Configurations start at £11,495.00 (incl. VAT for UK customers - International customers £9579.17 ex. VAT)
Clarity M-0812 maintains the the immediate visual presence of Clarity M-1215, whilst bringing the refined sound signature of Clarity M to smaller, mid-size applications such as bar, studio, or advanced home listening setups. The modular nature of Clarity means control over power and positioning with each system, with two or four-point options in point source configuration, as well as height adjustment via pole or flown Top:8 loudspeakers. Clarity M-0812 is shown in our custom green finish, also available in classic black or any RAL colour subject to additional cost. Further options include custom covers and mounting options.
Once again, we are proud to offer the finest amplification via our partners Full Fat Audio, offering true British power amplification, mirroring Clarity M-0812’s transparent sound signature.
“Clarity M-0812 was a natural progression for the MasterSounds range of Clarity M loudspeakers and offers a smaller footprint than its larger sibling, M-1215. Our Top:8 and Sub:12 enable excellent phase coherence in point source configuration, and Top:8 maintains the ability to be pole mounted or flown for wider dispersion of the high frequencies.” - Ryan Shaw
Are you interested in your own Clarity M System for an event space, HIFI bar, or home HiFi listening? Drop us an email using the form below and we can chat about your system requirements.
Configurations start at £11,495.00 (incl. VAT for UK customers - International customers £9579.17 ex. VAT)

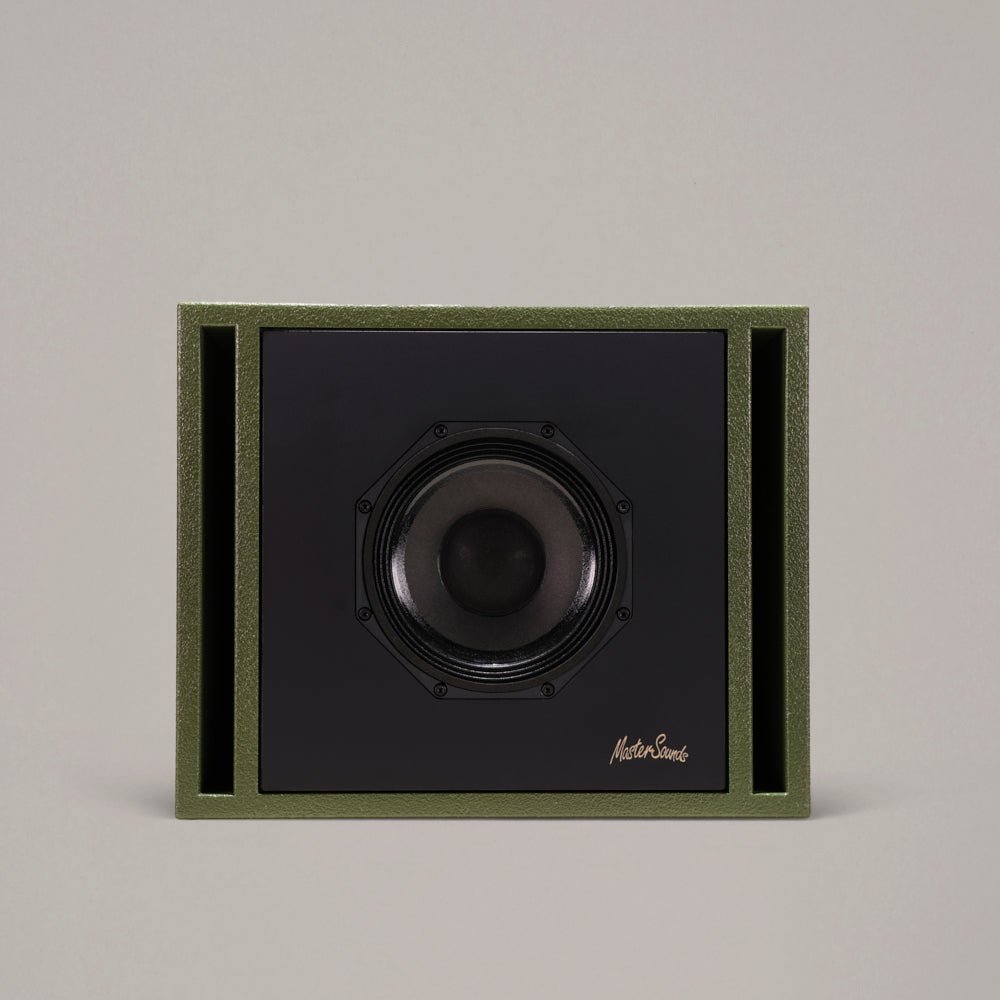

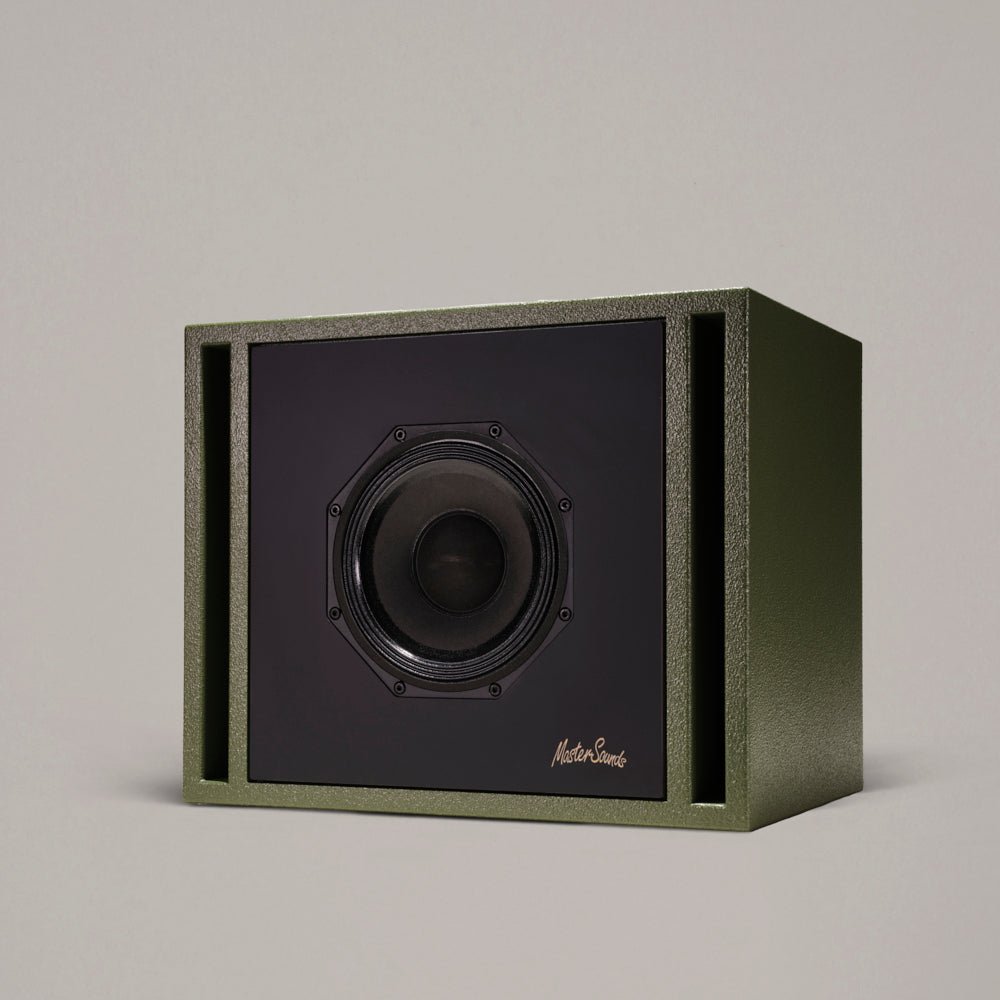

Top :8
• Coaxial type
• 1x 8” critically damped cellulose woofer
• 8Ω impedance
• Crossover frequency: 80Hz Fourth-order Linkwitz–Riley
• System bass loading type: Line loaded reflex Third-order Butterworth
• Dimensions (HxWxD): 460.5 mm x 552.0 mm x 450.0 mm
(18.12” x 21.73” x 17.71”)
• Weight: 16.78 kg (36.9 lbs)

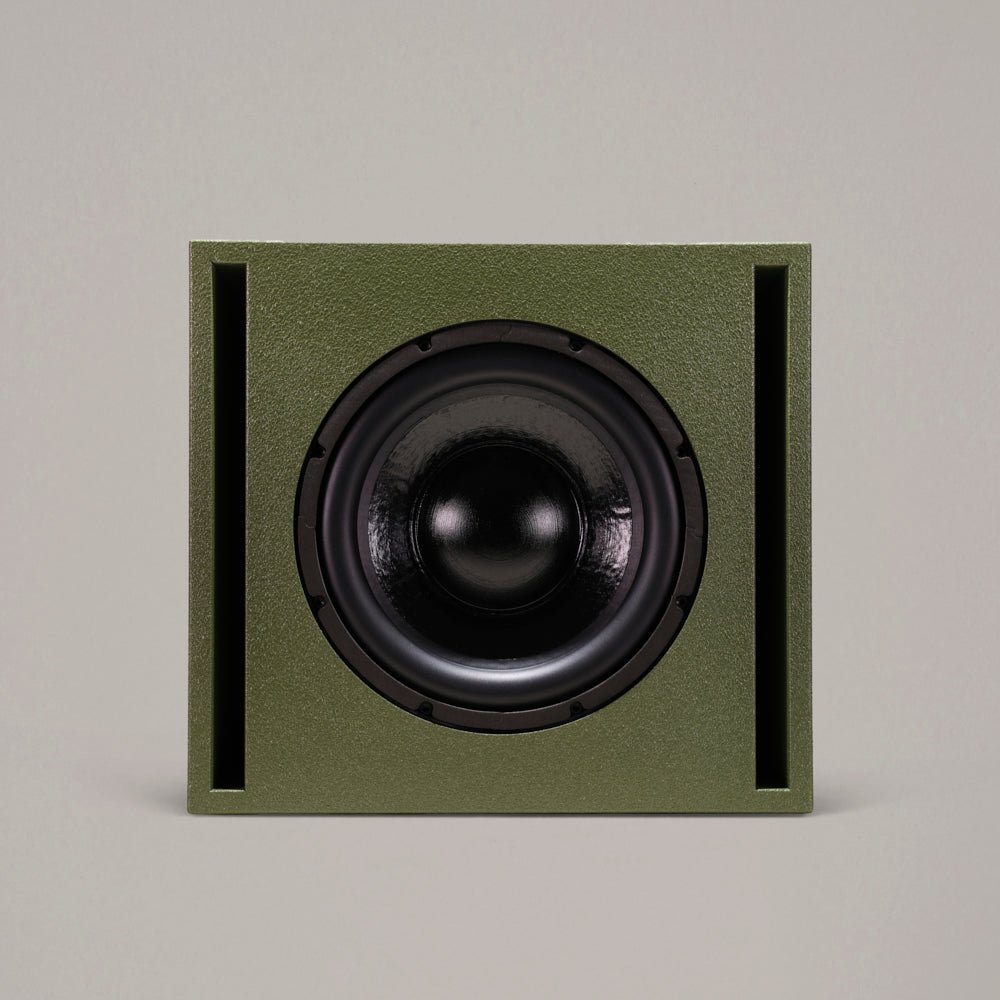

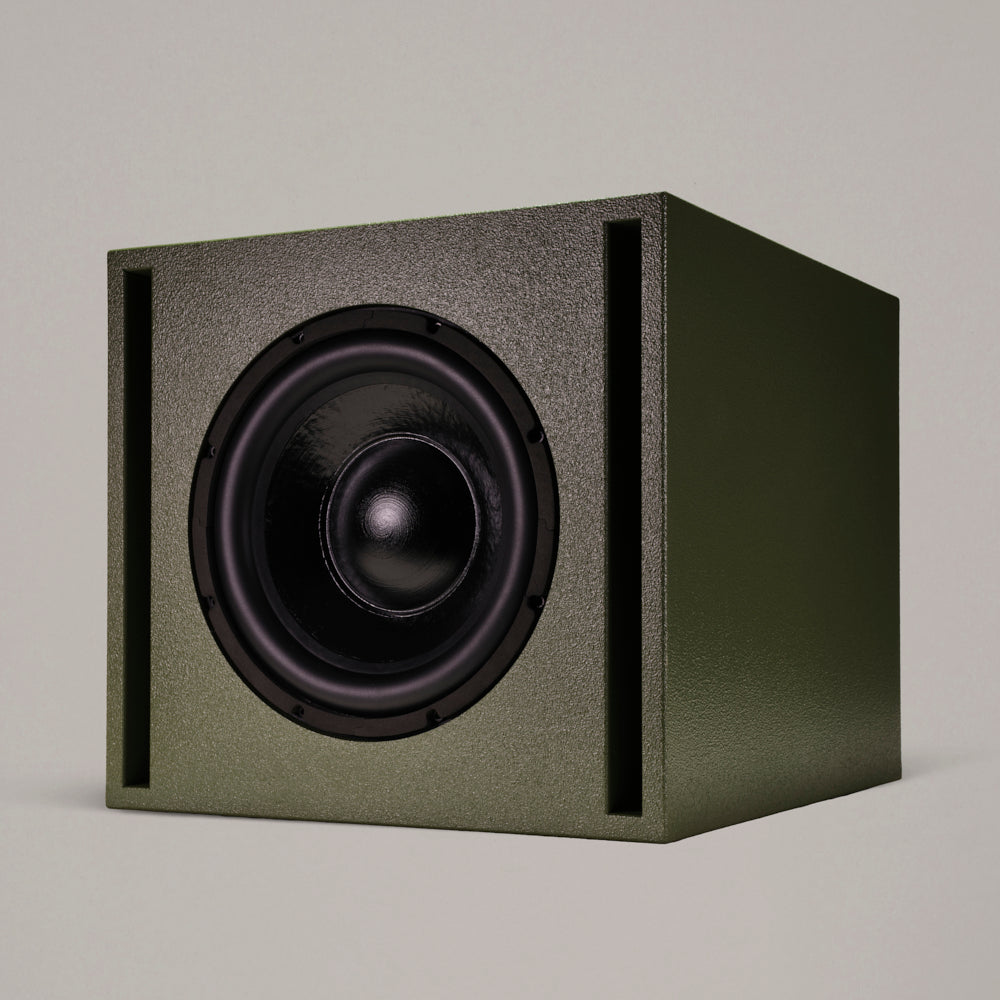

Sub:12
• 12“ parametrically balanced cellulose driver with high excursion
roll surround
• 8Ω impedance
• Crossover frequency: 80Hz Fourth-order Linkwitz–Riley
• System bass loading type: Line loaded reflex Third-order Butterworth
• Dimensions (HxWxD): 510.5 mm x 552.0 mm x 620.0 mm
(20.09” x 21.73” x 24.40”)
• Weight: 30.0 kg (66.1 lbs)
Full System
• System sensitivity: 45Hz-20KHz Bandwidth: 95dB 1 Watt @ 1MTR
• System Power: 1500W total
• Maximum SPL: 118dB
• System Frequency response: 35Hz - 20KHz
• Dimensions (HxWxD) per stack: 971.0 mm x 552.0 mm x 620.0 mm
(38.22” x 21.73” x 24.40”)
• Weight per stack: 76.8 kg (169.3 lbs)
• Weight full system: 153.6 kg (338.63 lbs)
• Amplifier: 1x FFA 5004 power amplifier (fixed crossover points)

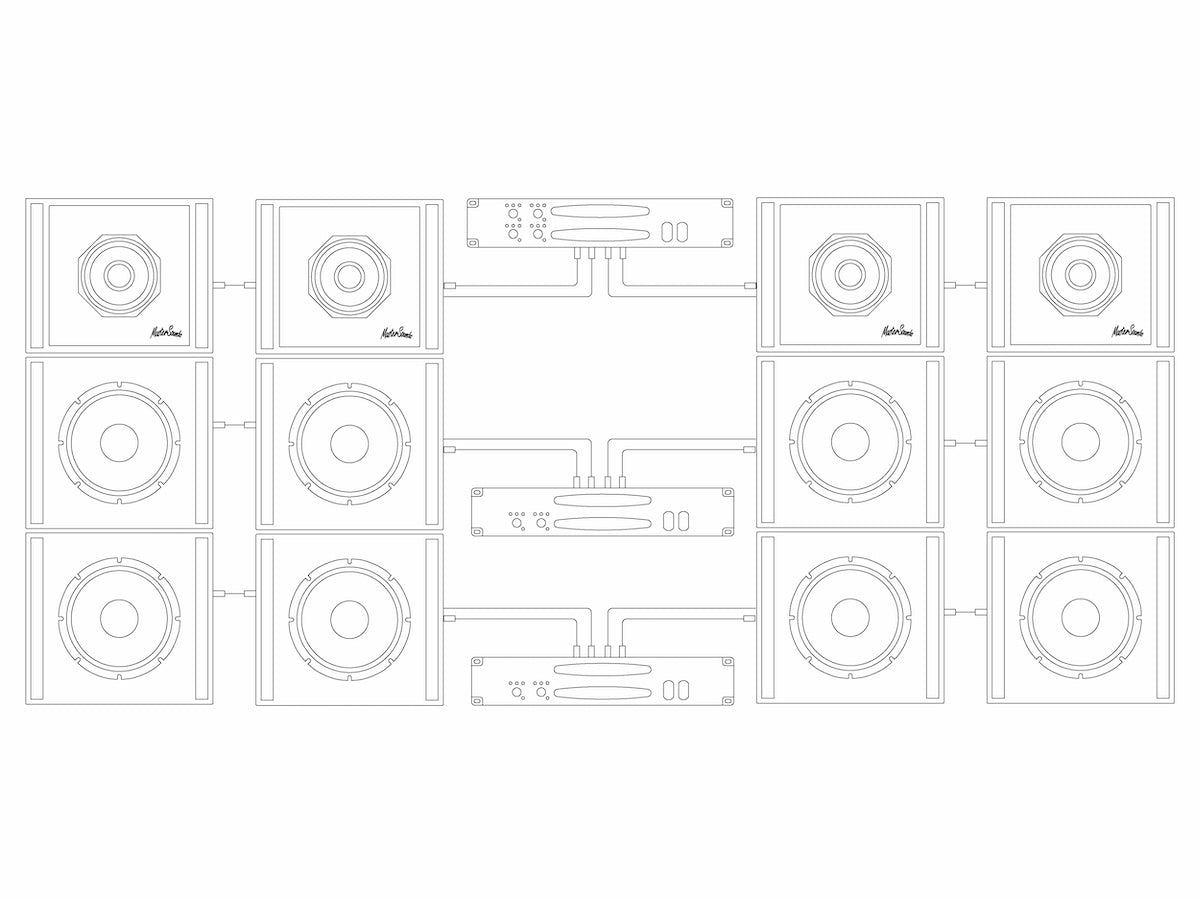

System Configurations

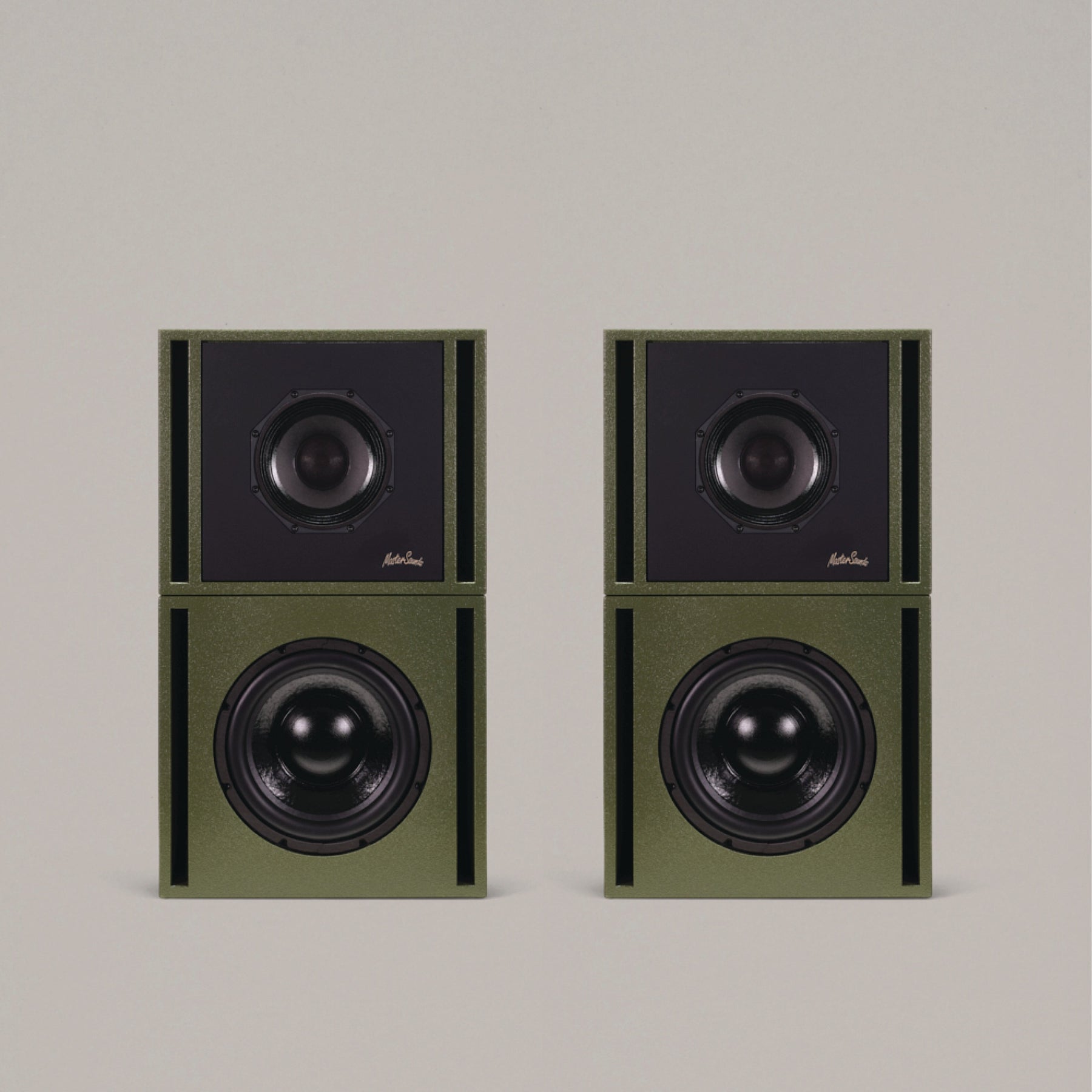

• 2x Top:8 & 2x Sub:12
• 1x FFA 5004 Amplifier

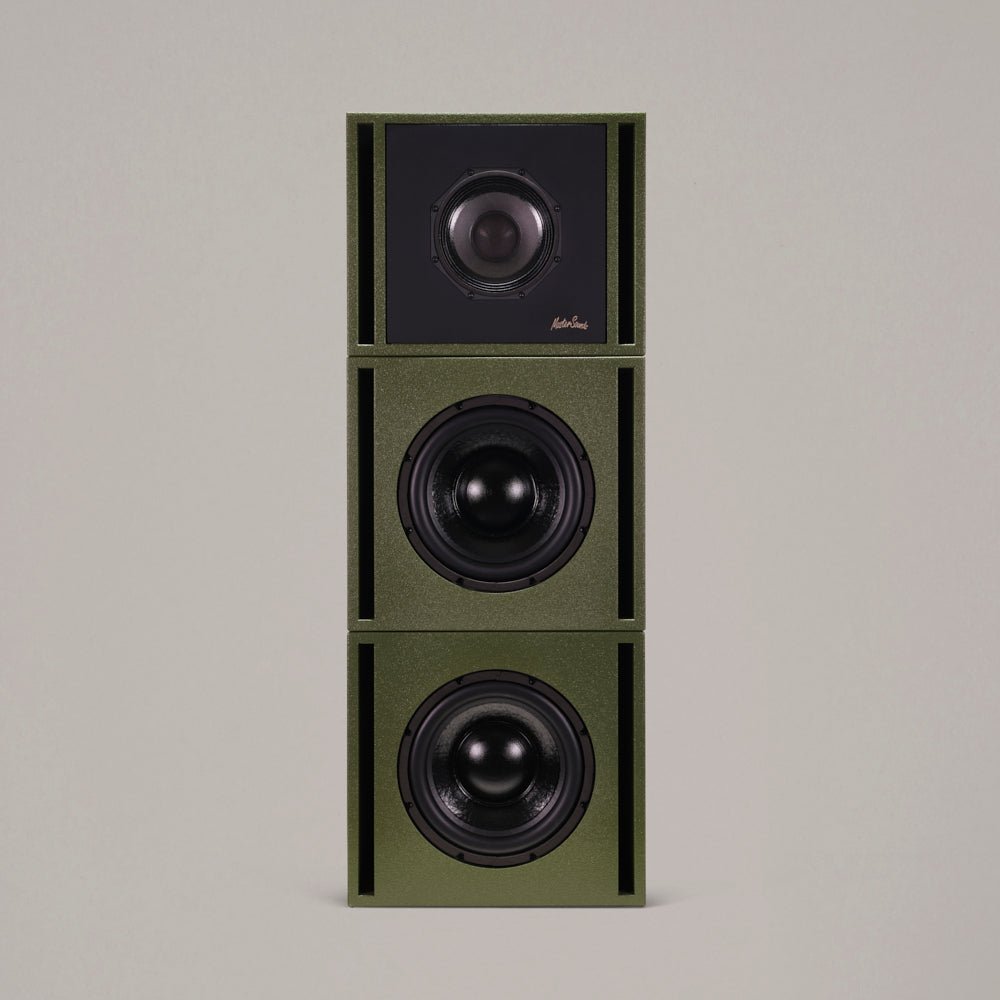

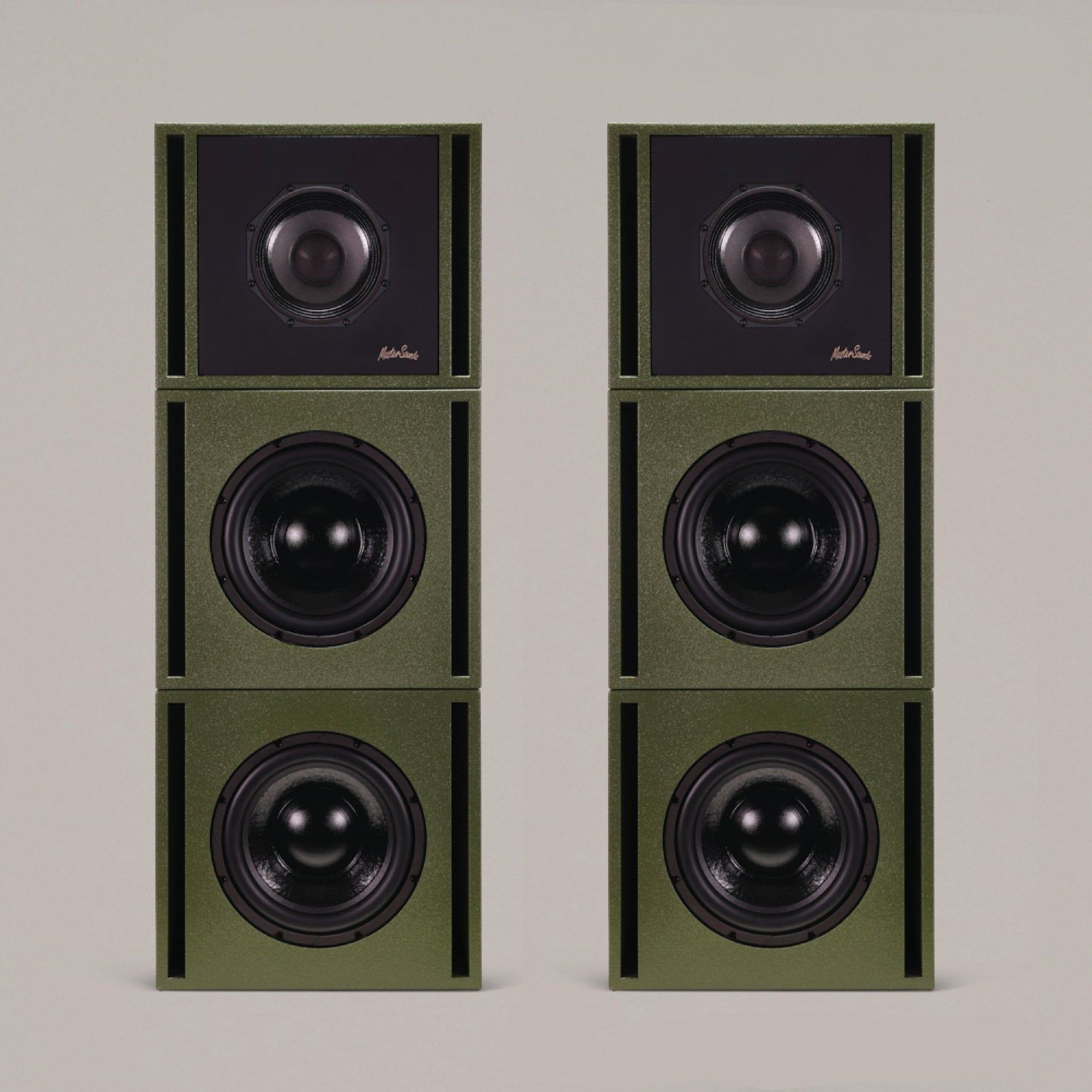

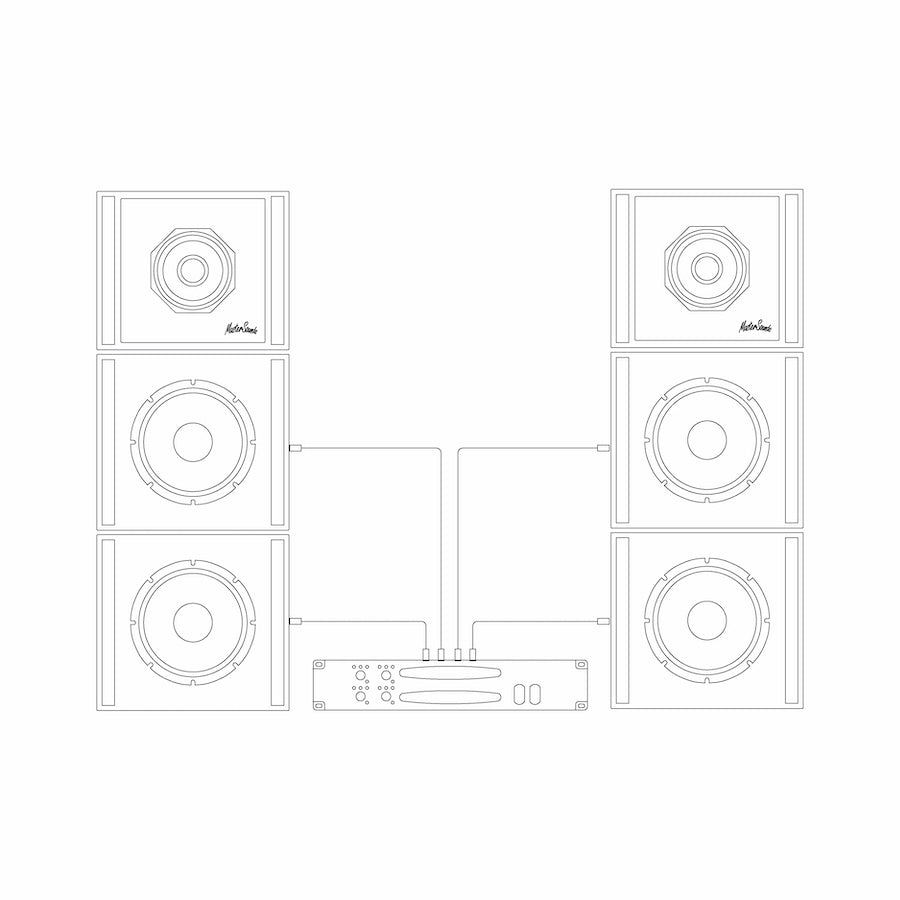

• 2x Top:8 & 4x Sub:12
• 1x FFA 5004 Amplifier

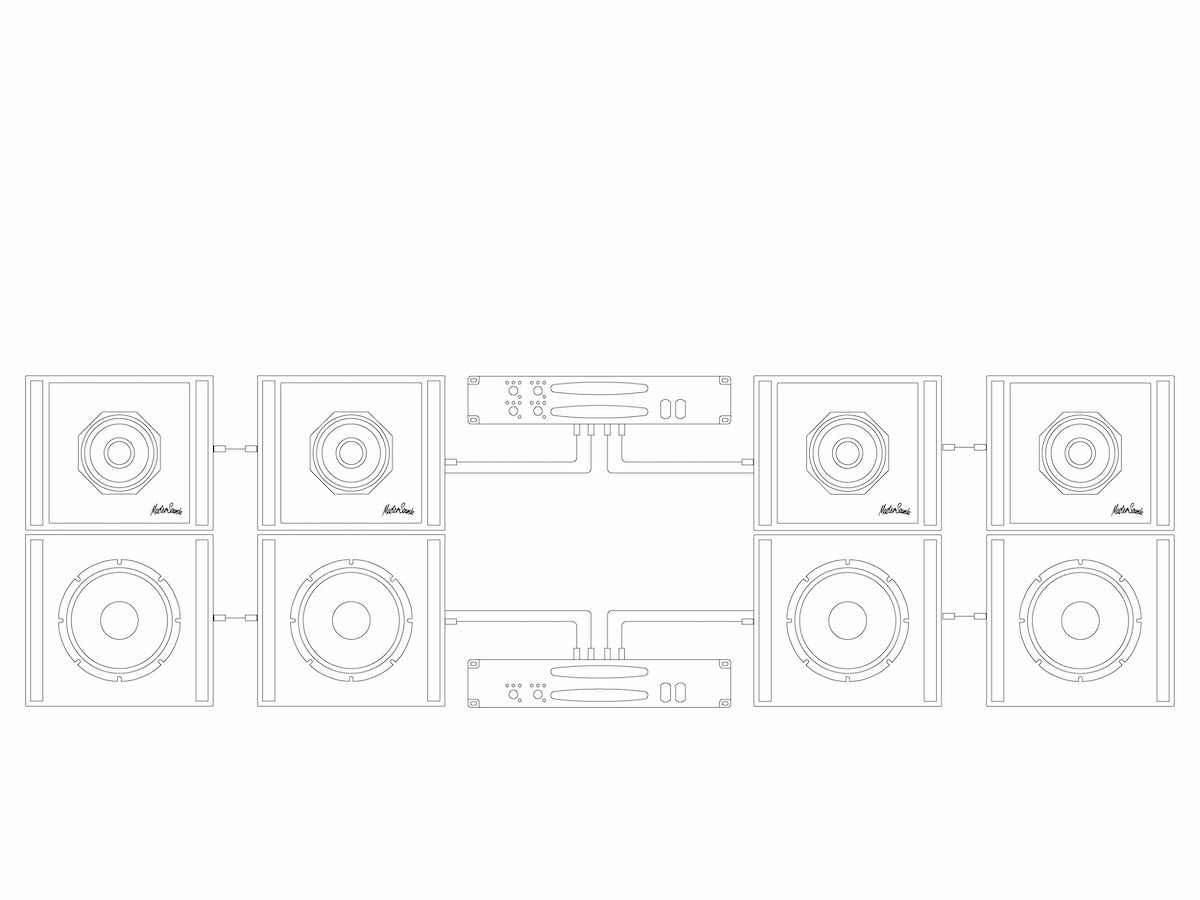

• 4x Top:8 & 4x Sub:12
• 1x FFA 5004 Amplifier
• 1x FFA 10000 Amplifier
• 4x Top:8 & 8x Sub:12
• 1x FFA 5004 Amplifier
• 2x FFA 10000 Amplifier
Mounting Options
Clarity M's Top 8 & Sub 12 have a multitude of mounting options as
shown below.

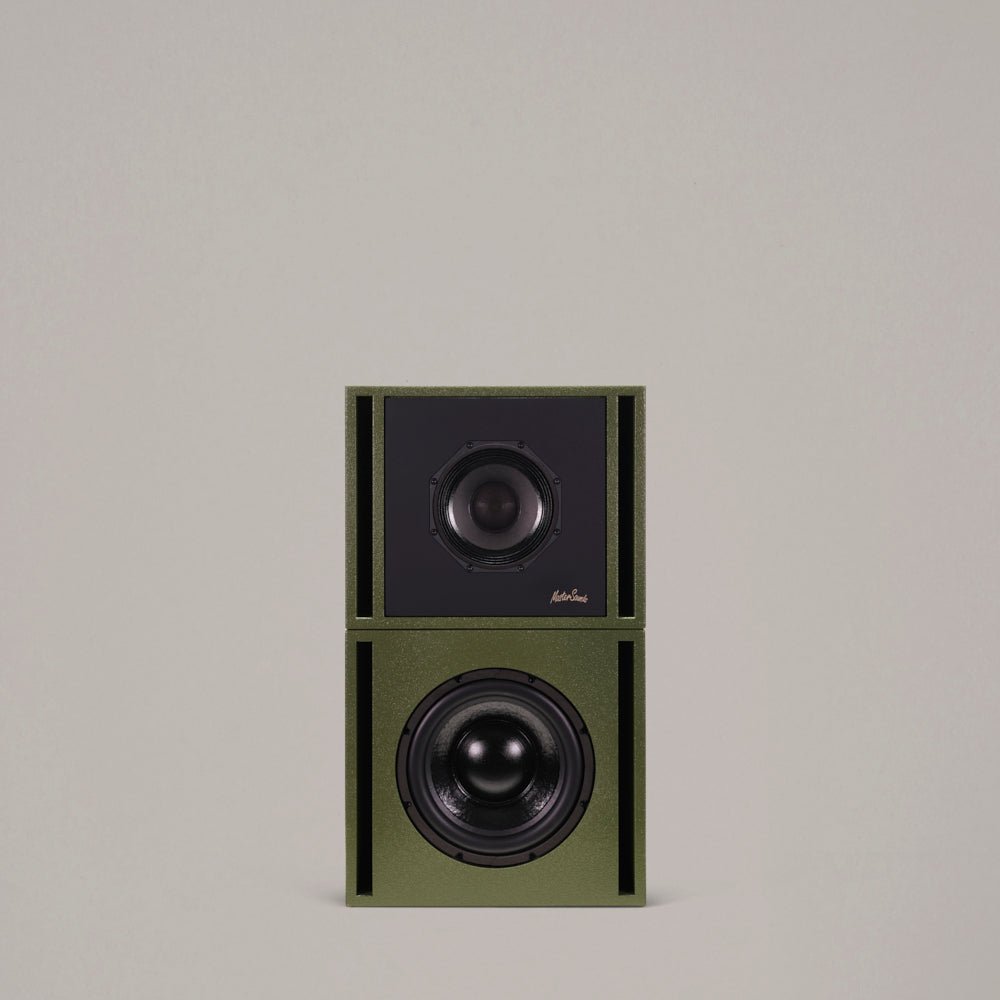

• Point Source when sat atop Sub 15

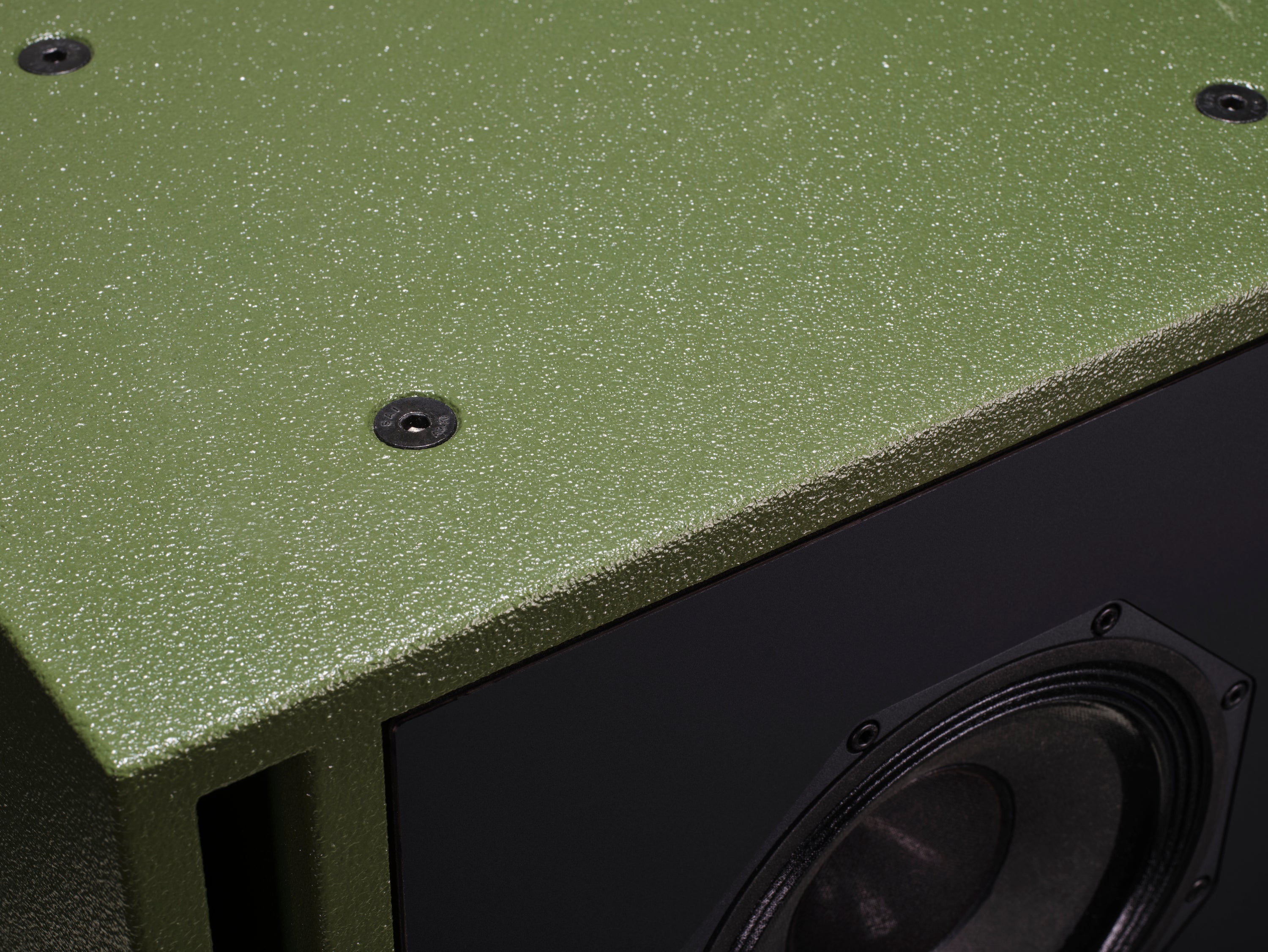

• Flown via 4 X M10 mounting points on Top 8
• Pole mounted via M12 screw on Sub 12 and on the bottom of Top 8
MasterSounds reserves the right to change the specification without notice.
Shipping & Payment
Due to the modular nature of Clarity M, shipping quotes will be different for each order. For a rough estimate, please contact us via email.
Please Note - Non-UK customers who do not pay a VAT on their purchase have to pay import duty on receiving goods, MasterSounds specifies the full purchase amount on all shipping and customs documents.
PayPal Express Checkout
We now offer the facility for customers to pay for their orders with PayPal Express Checkout. This allows you to take advantage of the various credit options supplied directly by PayPal to you as the customer. MasterSounds is not the proprietor of any credit agreements.
Return, Refund & Exchange Policy
If you are not completely satisfied with your MasterSounds purchase please contact us within 14 days of receiving your item to discuss a refund or exchange. Refunded and exchanged items must be unused and in all original packaging. No returns or exchanges are permitted on custom orders. The buyer is responsible for all return shipping costs.
Warranty
MasterSounds warrants that the product shall be free of defects in workmanship and materials for a period of twenty-four months* from the date of purchase. In the event that the product fails to operate as intended, MasterSounds will repair or replace the product subject to the conditions as stated in the Terms.
"Clarity M offers a wonderful sound experience designed for home, listening bar or discerning public venue"
Polar Response (2kHz Sine Reference)
• System Sensitivity: 45Hz-20KHz Bandwidth: 95dB 1 Watt @ 1MTR
• System Power: 1500W total
• Maximum SPL: 118dB
• System Frequency Response: 35Hz - 20KHz
"Our Top:8 and Sub:12 enable excellent phase coherence in point source configuration, and Top:8 maintains the ability to be pole mounted or flown for wider dispersion of the high frequencies.”
With its modular design, Clarity M is able to adapt to a wide range of scales and demands.
System Configurations
Interested In Clarity M?
Looking for your own Clarity M System for an event space, HIFI bar or home HiFi listening? Drop us an email using the form below and we can chat about your system requirements.
Configurations start at £11,495.00 (incl. VAT for UK customers - International customers £9579.17 ex. VAT)
